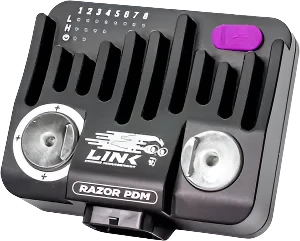

Link Razor PDM module

The Razor PDM (Power Distribution Module) is a programable computer that manages power delivery to components like lights, fans, or fuel pumps by processing inputs from ECUs, CAN keypads, switches, or sensors.

The Razor PDM gives complete control with precise power distribution, automated real-time adjustments, and fixing issues in real time to eliminate damage and breakdowns. The compact solid-state construction ensures a cleaner, easier installation with much less wiring and crimping.

•    Can be used in conjunction with a Link ECU or as a completely standalone device
•    4 high power outputs capable of 25A continuous, PWM, high side drive, low side drive, or paired for H-bridge actuator motor control
•    8 Universal A/D I/O pins, capable of 8A output each or as analog or digital inputs.  Software controlled pull-ups and adjustable switching thresholds when used as inputs
•    Over-Current and Short Circuit Protection, with configurable trip and resettable fuse parameters
•    Flexible and powerful control strategies including internal general purpose PID control, math functions, logic expressions and CAN keypad functions
•    CAN keypad integration and flexible button logic, buttons can control PDM or Link ECU functions (G4X or G4+ with some limitations)
•    Logging support via CAN or USB
•    Multiple PDM support - Add additional units and simply connect via CAN
•    USB Configuration via PDM Link software (Windows only)
•    The Razor PDM uses the Super Seal C plug
•    26 pin Superseal connector
•    Fully sealed CNC aluminium enclosure.
